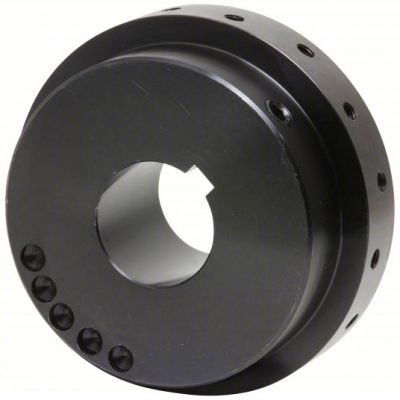

TB Woods WE5 Dura-Flex BTS Hub - 1-1/8" Shaft Bore
$128.70
SKU
WE5H118
BTS (Bore-To-Size) metal hubs for TB Woods Dura-Flex tire coupling elements. These BTS hubs will fit both standard and spacer elements. Tire couplings provide a simple, lightweight solution that can absorb a large amount of shock loading and torsional vibration while accomodating various shaft spacings. The two-piece element construction makes them easy to install and replace without any lubrication required.
TYPICALLY IN STOCK AT THE FACTORY. CALL TO CONFIRM.
- Manufacturer: TB Woods (Altra Motion)
- Part Number: WE5H118
- UPC Number: 698672118453
- Coupling Size: 5
- Shaft Bore Diameter: 1.125" (1-1/8")
- Hub Outer Diameter: 3.13"
- Material: Carbon Steel
- Torque Rating: 925 in-lb
- HP Rating @ 100 RPM: 1.5
- HP Rating @ 1160 RPM: 17
- HP Rating @ 1750 RPM: 26
- HP Rating @ 35000 RPM: 51
- Maximum RPM: 7500
- Maximum Parallel Misalignment: 1/16
- Maximum Angular Misalignment: 4°
