PS-758V Mechanical Seal
$57.62
SKU
PS-758V

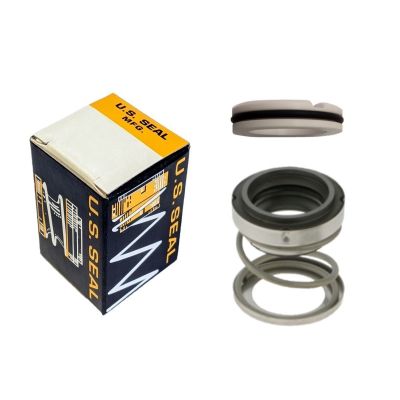

Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
- Manufacturer: US SEAL
- Manufacturer Part #: PS-758V
- Shaft Size: 1.500" (1-1/2")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Viton
- Rotary Head Dimensions: 2.187" OD, 1.125" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Ceramic/Viton
- Stationary Seat Dimensions: 2.125" Bore, 0.437" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Viton
- Manufacturer Equivalents:
