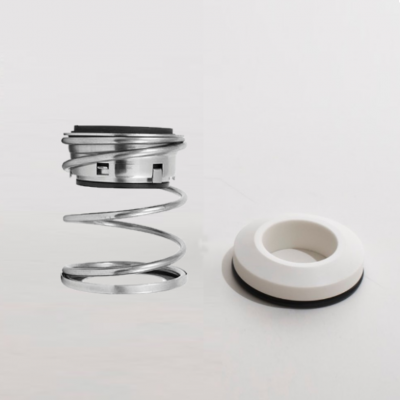

PS-416A Pump Seal
$123.51
SKU
PS-416A
• IN STOCK •
Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact. Common in rotary shaft equipment such as pumps, mixers, blenders, and compressors.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-416A
- Shaft Size: 1.250" (1-1/4")
- Rotary Head Type: US Seal Type D (John Crane Type 2)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.000" OD, 1.062" Operating Height
- Stationary Seat Type: Floating Oring Seat (US Seal Type 25)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 2.250" Bore, 0.625" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Buna
