PS-392V Pump Seal
$85.71
SKU
PS-392V
• IN STOCK •

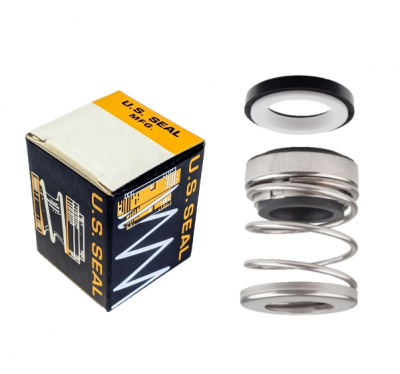

Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-392V
- Shaft Size: 0.500" (1/2")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Viton
- Rotary Head Dimensions: 0.937" OD, 0.718" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Viton
- Stationary Seat Dimensions: 0.938" Bore, 0.225" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Viton
