PS-3537 Mechanical Seal
$152.46
SKU
PS-3537

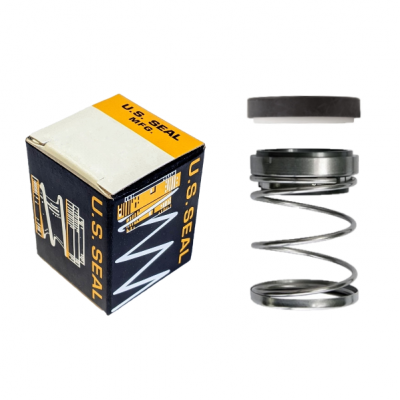

Elastomer bellows seal, non-clogging, long single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
- Manufacturer: US SEAL
- Manufacturer Part #: PS-3537
- Shaft Size: 2.250" (2-1/4")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 3.125" OD, 2.375" Operating Height
- Stationary Seat Type: Cup Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 3.125" Bore, 0.562" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Buna
- Manufacturer Equivalents:
