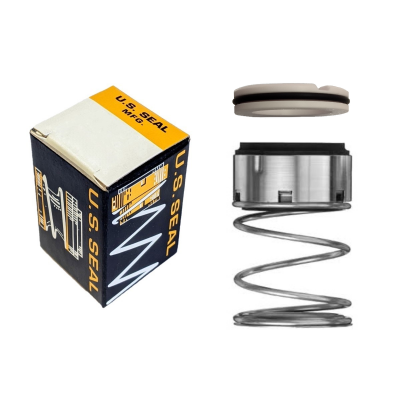

PS-3304 Pump Seal
$558.73
SKU
PS-3304
• IN STOCK •
Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact. Common in rotary shaft equipment such as pumps, mixers, blenders, and compressors. Balanced construction allows for higher pressure and less wear.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-3304
- Shaft Size: 2.000" (2") X 1.875" (1-7/8")
- Rotary Head Type: US Seal Type EB (John Crane Type 1B)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.625" OD, 2.500" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 2.625" Bore, 0.500" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 1200 psi (82.7 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Buna
