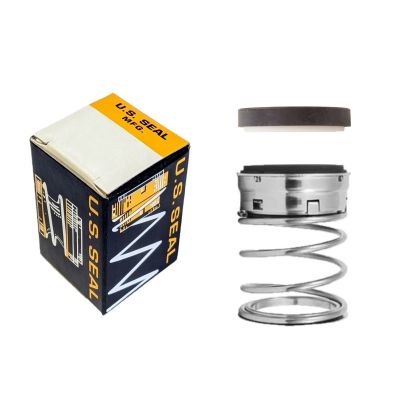

PS-305V-CMS Pump Seal
$119.23
SKU
PS-305V-CMS
• IN STOCK •
Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact. Common in rotary shaft equipment such as pumps, mixers, blenders, and compressors.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-305V-CMS
- Shaft Size: 1.500" (1-1/2")
- Rotary Head Type: US Seal Type E (John Crane Type 1)
- Rotary Head Material: SS/Carbon/Viton
- Rotary Head Dimensions: 2.000" OD, 1.688" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Viton
- Stationary Seat Dimensions: 2.125" Bore, 0.437" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 350 psi (24.1 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Viton
