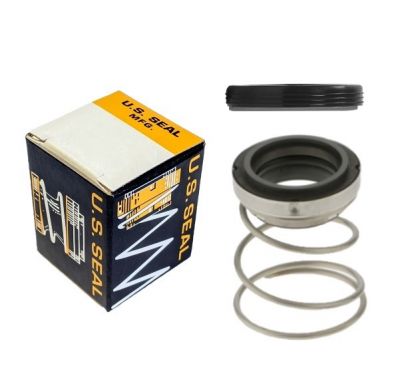

PS-249V-CMS Mechanical Seal
$65.74
SKU
PS-249V-CMS
• IN STOCK •
Elastomer bellows seal, non-clogging, single coil tapered spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
- Manufacturer: U.S. Seal Manufacturing
- Manufacturer Part #: PS-249V-CMS
- Shaft Size: 1.250" (1-1/4")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Viton
- Rotary Head Dimensions: 1.937" OD, 1.062" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ni-Resist(SS)/Viton
- Stationary Seat Dimensions: 1.875" Bore, 0.437" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Stainless
- Elastomers: Viton
