PS-249 Pump Seal
$56.01
SKU
PS-249
• IN STOCK •

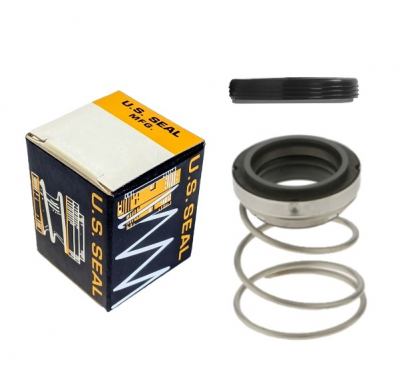

Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-249
- Shaft Size: 1.250" (1-1/4")
- Rotary Head Type: US Seal Type C (John Crane Type 21) w/ Tapered Spring
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 1.937" OD, 1.062" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Stainless/Buna
- Stationary Seat Dimensions: 1.875" Bore, 0.437" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Stainless (Ni-Resist)
- Elastomers: Buna
