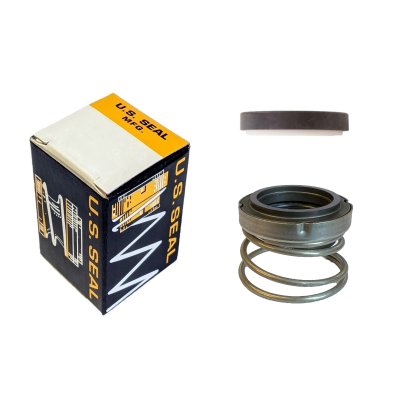

PS-245V-CMS Pump Seal
$263.83
SKU
PS-245V-CMS
Elastomer bellows seal, non-clogging, single coil tapered spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
SHIPS SAME DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: US SEAL
- Part Number: PS-245V-CMS
- Shaft Size: 1.000" (1")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Viton
- Rotary Head Dimensions: 1.687" OD, 1.000" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Viton
- Stationary Seat Dimensions: 1.625" Bore, 0.437" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Viton
