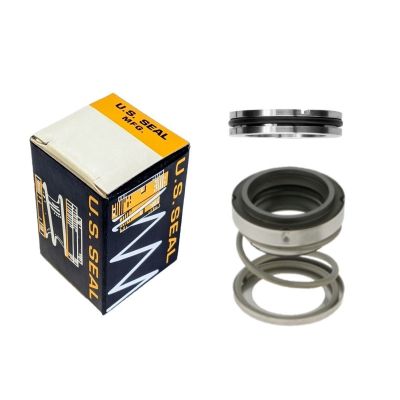

PS-2203 Pump Seal
$110.33
SKU
PS-2203
• IN STOCK •
Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-2203
- Shaft Size: 1.250" (1-1/4")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/P66/EPR
- Rotary Head Dimensions: 1.937" OD, 1.062" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Stainless/EPR
- Stationary Seat Dimensions: 1.875" Bore, 0.437" Thick
- Maximum Temperature: 300F (149C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: P66 Metal-Filled Carbon vs. Stainless
- Elastomers: EPR
