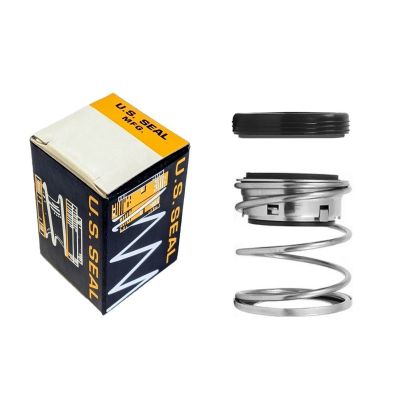

PS-186 Pump Seal
$106.68
SKU
PS-186
• IN STOCK •
Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact. Common in rotary shaft equipment such as pumps, mixers, blenders, and compressors.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-186
- Shaft Size: 1.375" (1-3/8")
- Rotary Head Type: US Seal Type D (John Crane Type 2)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.187" OD, 1.125" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Stainless/Buna
- Stationary Seat Dimensions: 2.000" Bore, 0.437" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 350 psi (24.1 Bar)
- Seal Faces: Carbon vs. Stainless (Ni-Resist)
- Elastomers: Buna
