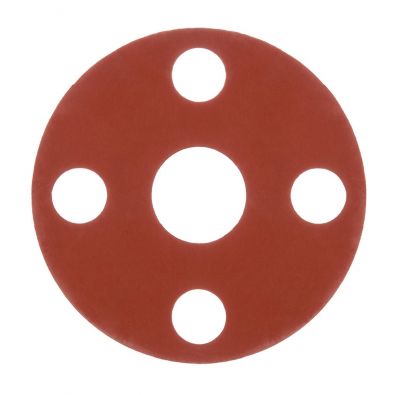

(PACK OF 25) 1/8" Red Rubber Gasket, Full Face, for 1"-150# Flanges
Full-face flange gaskets made to fit standard ANSI pipe flange dimensions. Red rubber is a general service SBR rubber compound of excellent quality making it a great option for economical gasket material. SBR conforms easily to uneven flange surfaces, has good abrasion resistance, excellent impact strength, very good resilience, and a high tensile strength. It is a very popular flange gasket material for water applications up to 170 degrees. Red Rubber is not suited for use with oils, fuels, solvents or hydraulic fluids.
*PACK OF 25 GASKETS*
Style: Full Face Gasket
Material: General Service SBR Rubber, Smooth Finish
Pipe Size: 1"
ANSI Flange Class: 150 lb
Thickness: 0.125" (1/8")
Inside Diameter: 1.3125" (1-5/16")
Outside Diameter: 4.250" (4-1/4")
No. of Bolts: 4
Hole Diameter: 0.625" (5/8")
Bolt Circle Diameter: 3.125" (3-1/8")
Maximum Temperature: 210°F (99°C)
Maximum Continuous Temperature: 170°F (77°C)
