Grundfos 91868171 Mechanical Seal
$34.89
SKU
GRUNDFOS91868171

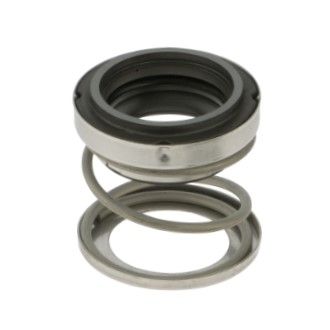

Mechanical seal assembly for Grundfos pumps. Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows.
- Manufacturer: US SEAL
- Shaft Size: 1.250" (1-1/4")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 1.937" OD, 1.062" Operating Height
- Stationary Seat Type: No Seat
- Stationary Seat Material: N/A
- Stationary Seat Dimensions: N/A
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon
- Elastomers: Buna
- Manufacturer Equivalents: GRUNDFOS 91868171
