Grundfos 91867963 Mechanical Seal
$227.50
SKU
GRUNDFOS91867963

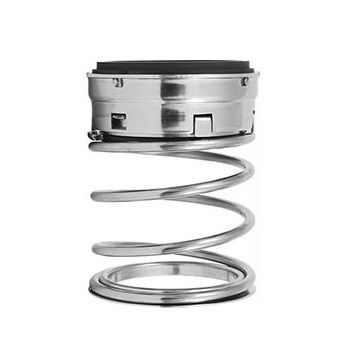

Mechanical seal assembly for Grundfos pumps. Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact.
- Manufacturer: US SEAL
- Shaft Size: 1.750" (1-3/4")
- Rotary Head Type: US Seal Type E (John Crane Type 1)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.375" OD, 2.000" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Ni-Resist(SS)/Buna
- Stationary Seat Dimensions: 2.500" Bore, 0.500" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 350 psi (24.1 Bar)
- Seal Faces: Carbon vs. Stainless
- Elastomers: Buna
- Manufacturer Equivalents: GRUNDFOS 91867963
